PCA

[!tldr] Summary Principal Component Analysis, by Karl Pearson, 1901. Formalised by Harold Hotelling.

Introduction

Objective

Principal Component Analysis (PCA) is a dimension reduction technique. It consists in transforming correlated variable into new un-correlated variable while keeping as much information as possible. Given a set of data-points \(\mathbf{X}\in \mathbb{R}^{(n,q)}\), the main goal is to define an orthogonal projection on a subspace \(E_{q}\) of \(\mathbb{R}^{p}\) with dimension \(q \lt p\). In other words, we are looking to define \(q\) new variables, un-correlated, obtained through linear combination of the \(p\) initial variables, while losing as few information as possible. These variables are called Principal Components.

To achieve this, it is necessary to find a new vector basis of dimension \(q\) that distorts the point cloud as little as possible, i.e., one that preserves the dispersion (inertia) of the data as much as possible.

The data

Metric space of data points

We are interested in the proximity / similarity between data points. The metric used depends on the type of PCA used:

• Canonical PCA: We use \(\mathbf{M} = \mathbf{I}_{p} \iff \text{use the Euclidian distance } d_{M}^{2}(\mathbf{\tilde{x}}_{i}, \mathbf{\tilde{x}}_{l}) = d^{2}(\mathbf{\tilde{x}}_{i}, \mathbf{\tilde{x}}_{l}) = \sum_{j=1}^{p}(\tilde{x}_{i}^{j} - \tilde{x}_{l}^{j})^{2}\). In that case we supposed the data are homogeneous and of the same magnitude.
• Normed PCA: We use \(\mathbf{M} = \mathbf{D}_{1/s^{2}}\) which is equivalent to dividing each variable by its standard deviation: \(d_{M}^{2}= (\tilde{x}_{i}, \tilde{x}_{l}) = \sum_{j=1}^{p}\frac{(\tilde{x}_{i}^{j} - \tilde{x}_{l}^{j})^{2}}{s_{j}^{2}}\).

Using the metric \(\mathbf{M} = \mathbf{D}_{1/s^{2}}\) on the centered data \(\mathbf{\tilde{X}}\) is equivalent to using the metric \(\mathbf{M} = \mathbf{I}_{p}\) on the standardised data \(\mathbf{Z}\), i.e. \(d_{M}^{2}(\tilde{\mathbf{x}}_{i}, \mathbf{\tilde{x}}_{l}) = d^{2}(\mathbf{z}_{i}, \mathbf{z}_{l})\).

Metric space of variables

To characterise the structure of the variables, we are interested in their proximity / similarity. We chose the metric \(\mathbf{M} = \mathbf{D}_{w}\) which is positive semi-definite. By using this metric, we have:

• \[\langle \mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{k} \rangle_{D_{w}} = \text{cov}(\mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{k}) = s_{jk}\]
• \[\lVert \mathbf{\tilde{x}}^{j} \rVert_{D_{w}}^{2} = \langle \mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{j}\rangle_{D_{w}} = \text{var}(\mathbf{\tilde{x}}^{j}) = s_{j}^{2}\]
• \[d_{D_{w}}^{2}(\mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{k}) = \lVert \mathbf{\tilde{x}}^{j} - \mathbf{\tilde{x}}^{k} \rVert_{D_{w}}^{2} = \text{var}(\mathbf{\tilde{x}}^{j} - \mathbf{\tilde{x}}^{k})\]
• \[\cos \theta_{D_{w}}(\mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{k}) = \frac{\langle \mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{k} \rangle_{D_{w}}}{\lVert \mathbf{\tilde{x}}^{j}\rVert_{D_{w}} \lVert \mathbf{\tilde{x}}^{k}\rVert_{D_{w}}} = \frac{s_{jk}}{s_{j}s_{k}} = \text{cor}(\mathbf{\tilde{x}}^{j}, \mathbf{\tilde{x}}^{k}) = r_{jk}\]

Inertia of the data point cloud

To characterise a cloud of points, we use the notion of inertia.

The inertia of a cloud of points is defined as the weighted mean of the squared distances between the points and the centre of gravity, formally:

Or with matrices:

It measures the dispersion of the points / how spread the points are around the centre of gravity.

The inertia of a cloud of points equals the inertia of a centred cloud.

In particular:

• In a canonical PCA, \(\mathbf{M}= \mathbf{I}_{p}\), then \(I = \text{trace}(\mathbf{V}) = \sum_{j=1}^{p}s_{j}^{2}\)
• In a normed PCA, \(\mathbf{M} = \mathbf{D}_{1/s^{2}}\), then \(I = \text{trace}(\mathbf{V}\mathbf{D}_{1/s^{2}}) = \text{trace}(\mathbf{D}_{1/s}\mathbf{V}\mathbf{D}_{1/s}) = \text{trace}(\mathbf{R}) = p\)

Inertia of the Projected Data Point Cloud

The goal of [[PCA]] is to project the data point cloud on a linear sub-space of \(\mathbb{R}^{p}\), so we are interested in the inertia after this projection.

Inertia on the linear subspace: The inertia of a data point cloud explained by a linear subspace $F$ of \(\mathbb{R}^{p}\) is the inertia of the cloud projected onto \(F\):

where \(P_{F}(\mathbf{\tilde{x}})\) is the orthogonal projection of \(\mathbf{\tilde{x}}_{i}\) onto \(F\).

Inertia has some properties:

Decomposition

Let \(F\) be a linear subspace of \(\mathbb{R}^{p}\) and \(F^{\perp}\) its \(\mathbf{M}\)-orthogonal supplementary space. The total inertia of a data point cloud of \(\mathbb{R}^{p}\) can be decomposed as:

where \(I_{F}\) is the inertia of the projected cloud, and \(I_{F^{\perp}}\) is a measure of the distortion of the cloud when projecting onto \(F\) (i.e., the inertia lost during the projection).

More generally, if \(F = F_{1} \oplus F_{2}\) with \(F_{1} \perp F_{2}\), then the inertia carried by \(F\) is:

The Principal Components Analysis Method

Problem Formulation

PCA problem formulation: We are looking for a linear sub-space \(E_{k}\) of \(\mathbb{R}^{p}\) of dimension $k \lt p$ such that the inertia of the cloud projected onto \(E_k\) is maximized:

\(E_{k}\) is called the principal linear sub-space of dimension \(k\).

Theorem

Let \(E_{k-1}\) be a linear sub-space of \(\mathbb{R}^{p}\) with dimension $k-1 \lt p$ carrying the maximum inertia of the data cloud. Then, a linear sub-space of dimension $k$, $E_{k}$ can be obtained by:

where \(\mathbf{\Delta}_{u_{k}}\) is the \(\mathbf{M}\)-orthogonal line to \(E_{k-1}\), spanned by the vector \(u_{k}\) which carries the maximal energy.

Consequence: The principal linear sub-spaces, solution to the PCA problem, can be obtained in an iterative way.

Solution of the Problem

The procedure to build the principal linear sub-spaces is as follows:

1. \(E_{1} = \mathbf{\Delta}_{u_{1}}\) where \(\mathbf{\Delta}_{u_{1}}\) is the line maximising the inertia explained by \(I_{\Delta_{u_{1}}}\)
2. \(E_{2} = E_{1} + \mathbf{\Delta}_{u_{2}}\) where \(\mathbf{\Delta}_{u_{2}}\) is the \(\mathbf{M}\)-orthogonal line to \(E_{1}\) which maximises the explained inertia \(I_{u_{2}}\)
3. \[\dots\]
4. \(E_{k} = E_{k-1} \oplus \mathbf{u}_{k}\) where \(\mathbf{u}_{k}\) is the \(\mathbf{M}\)-orthogonal direction to \(E_{k-1}\) that maximises the explained inertia \(I_{u_{k}}\)

Principal vectors and axes

The vectors \(u_{1}, u_{2}, \dots, u_{k}\) are called the principal vectors of the [[PCA]] and the lines they span, \(\mathbf{\Delta}_{u_{1}}, \mathbf{\Delta}_{u_{2}}, \dots, \mathbf{\Delta}_{u_{k}}\) are called principal axis of the [[PCA]].

So now the question is how to obtain these vectors?

Computation of the Principal Vectors

Computation of \(\mathbf{u}_{1}\)

Recall, let \(\mathbf{u}\) be a \(\mathbf{M}\)-normed vector of \(\mathbb{R}^{p}\) (\(\lVert \mathbf{u} \rVert_{\mathbf{M}} = 1\)), the inertia explained by the line \(\mathbf{\Delta}_u\) spanned by \(\mathbf{u}\) is:

We are thus looking for the vector \(\mathbf{u}_{1}\), \(\mathbf{M}\)-normed, such that the projected cloud has the maximal inertia:

Constrained Optimisation Problem (\(\lVert \mathbf{u} \rVert_{\mathbf{M}} = \mathbf{u}^{T} \mathbf{M} \mathbf{u} = 1\))

We transform it as an unconstrained optimisation problem by introducing a Lagrange multiplier:

The solution of the optimisation problem nullifies the partial derivatives:

\(u_{1}\) and \(\lambda_{1}\) satisfy \(\mathbf{VM} u_{1} = \lambda_{1} u_{1}\) and \(u_{1}^{T} \mathbf{M} u_{1} - 1 = 1\).

So, \(u_1\) is the eigenvector, \(\mathbf{M}\)-normed, of the matrix \(\mathbf{VM}\) associated with the eigenvalue \(\lambda_{1}\).

The inertia is then:

To maximise inertia, the first principal vector should be chosen as the eigenvector \(u_{1}\) associated with the largest eigenvalue \(\lambda_{1}\) of the matrix \(\mathbf{VM}\).

• Eigenvectors correspond to privileged directions of the matrix.
• Eigenvalues represent the scaling factors (stretching or compression) along these directions.

Computation of \(u_{k}\)

Similar procedure. Suppose we know the \(k-1\) first principal vectors \(u_{1}, u_{2}, \dots, u_{k-1}\). We are looking for the vector \(u_{k}\), \(\mathbf{M}\)-normed, \(\mathbf{M}\)-orthogonal to \(u_{1}, u_{2}, \dots, u_{k-1}\) such that the projected cloud has the maximal inertia.

By applying the method of the Lagrange multiplier with the added orthogonality constraints, we have:

The \(k\)-th principal vector \(u_{k}\) is the eigenvector associated with the \(k\)-th largest eigenvalue \(\lambda_{k}\) of the matrix \(\mathbf{VM}\).

The inertia explained by the \(k\)-th principal axis \(\Delta_{u_{k}}\) (spanned by \(u_{k}\)) is given by:

Thus,

Theorem

For all \(k \leq p\), the space \(E_{k}\) of dimension \(k\), which carries the maximal inertia of the point cloud, is spanned by the first \(k\) eigenvectors \(u_{1}, u_{2}, \dots, u_{k}\) associated with the \(k\)-th largest eigenvalue of the matrix \(\mathbf{VM}\): \(\lambda_{1}, \lambda_{2}, \dots, \lambda_{k}\) (ordered from the smallest to the largest).

The inertia explained by \(E_{k} = \mathbf{\Delta}_{u_{1}} \oplus \mathbf{\Delta}_{u_{2}} \oplus \dots \oplus \mathbf{\Delta}_{u_{k}}\) is:

Remarks:

• \(I_{E_{p}} = \sum_{j=1}^{p} \lambda_{j} = \text{trace}(\mathbf{VM})\)
• The matrix \(\mathbf{VM}\) is \(\mathbf{M}\)-symmetric positive semi-definite. Consequently, all the eigenvalues \(\lambda_{1}, \lambda_{2}, \dots, \lambda_{k}\) are real and positive, and the eigenvectors \(\mathbf{u}_{1}, \mathbf{u}_{2}, \dots, \mathbf{u}_{k}\) forms a \(\mathbf{M}\)-orthonormal basis of \(E_{p}\).

Projection of the Data Point Cloud and Principal Components

To represent the data point cloud in the bases of the principal vectors \(\mathbf{u}_{1}, \mathbf{u}_{2}, \dots, \mathbf{u}_{k}\) of \(\mathbb{R}^{p}\), we compute the coordinates, called principal components, of the data point cloud projected onto each principal axis. The coordinates \(c_{i}^{j}\) of the data point \(\mathbf{\tilde{x}}_{i}\) on the principal axis \(\mathbf{\Delta}_{\mathbf{u}_{j}}\) are given by:

The vector \(\mathbf{c}^{j} \in \mathbb{R}^{n}\), which contains the coordinates of the \(n\) data points along the axis \(\mathbf{\Delta}_{\mathbf{u}_{j}}\), is called the \(j\)-th principal component:

The decomposition of data point \(i\) in the basis of the principal vectors \((\mathbf{u}_{1}, \mathbf{u}_{2}, \dots, \mathbf{u}_{p})\) of \(\mathbb{R}^{p}\) is given by:

The projection of data point \(i\) into the principal subspace \(E_{q}\) spanned by \(q\) \((q < p)\) principal vectors \((\mathbf{u}_{1}, \mathbf{u}_{2}, \dots, \mathbf{u}_{q})\) is given by:

Properties of Principal Components

• The \(\mathbf{c}^{j} = \mathbf{Y M u_{j}}\) are linear combinations of the original variables \(\mathbf{\tilde{x}}^{j}\).
  • The principal components can be interpreted as new variables associated with the data points.
• The \(\mathbf{c}^{j}\) are centered, with variance \(\lambda_{j}\) and pairwise uncorrelated.
  • \((\mathbf{c}^{1}, \mathbf{c}^{2}, \dots, \mathbf{c}^{p})\) form a \(D_{w}\)-orthogonal system in the space of variables \(\mathbb{R}^{n}\).

By defining the vector \(\mathbf{d}^{j} = \frac{\mathbf{c}^{j}}{\sqrt{\lambda_{j}}}\), called the \(j\)-th principal factor, we obtain a \(D_{w}\)-orthonormal system in \(\mathbb{R}^{n}\): \((\mathbf{d}^{1}, \mathbf{d}^{2}, \dots, \mathbf{d}^{p})\).

Projection of the Variable Cloud

To represent the variable cloud in the linear sub-space \(F_{q}\) spanned by \(q\) principal factors \(\mathbf{d}^{1}, \mathbf{d}^{2}, \dots \mathbf{d}^{q}\), \(q < p\).

The coordinate of the variable \(\mathbf{\tilde{x}}^{j}\) on the axis spanned by \(\mathbf{d}^{k}\) is:

and \(\mathbf{c}^{k} = \mathbf{\tilde{X} M u_{k}}\), so,

and \(\mathbf{\tilde{X}}^{T} \mathbf{D_{w} \tilde{X}} = \mathbf{V}\), so \(\mathbf{\tilde{x}}^{j^{T}} \mathbf{D_{w} \tilde{X}} = \mathbf{V}_{j}\), and

Thus,

Coordinates of the Variable \(\mathbf{\tilde{x}}^{j}\) onto the Axis Spanned by \(\mathbf{d}^{k}\)

Summary of PCA Method:

Inputs:

• \(\mathbf{\tilde{X}}\) or \(\mathbf{Z}\): matrix \((n, p)\) of the centered or standardized data
• \(\mathbf{D}_{w}\): matrix \((n, n)\) of the weights of each data point (which defines a metric on the space of variables)
• \(\mathbf{M}\): matrix \((p, p)\) which defines a metric on the space of data points.

Outputs:

• \(\lambda_{1}, \lambda_{2}, \dots, \lambda_{p}\): eigenvalues of the matrix \(\mathbf{V M} = \mathbf{Y}^{T} \mathbf{D}_{w} \mathbf{Y M}\), ordered by descending order, they are real and positive.
• \(\mathbf{u}_{1}, \mathbf{u}_{2}, \dots, \mathbf{u}_{p}\): the principal vectors, which are in fact the eigenvectors associated with the matrix \(\mathbf{M}\), and which form a \(\mathbf{M}\)-orthonormal basis of \(\mathbb{R}^{p}\).
• \(\mathbf{c}^{1}, \mathbf{c}^{2}, \dots, \mathbf{c}^{p}\): the principal components given by \(\mathbf{c}^{j} = \mathbf{Y M u}_{j}\).

Representation and interpretation

Representation of the data points

The objective of [[PCA]] is dimension reduction, we want to keep as few axis as possible. So, how to chose how many to keep? There is no consensus but several criteria exist in the literature:

• Explained variance: The number of components \(q\) is chosen such that they account for a predefined proportion or percentage of the total variance, given by \(I=\sum_{j=1}^{p}\lambda_{j}\). These method ensures that the selected components provide a sufficient global representation of the data
• Kaiser’s rule: Only components associated with eigenvalues greater than the average eigenvalue \(\frac{I}{p}\)​ are retained, as these are considered the most “informative.” In the case of standardized PCA, this average eigenvalue equals 1.
• Elbow criterion: involves plotting the eigenvalues \(\lambda_j\)​ in decreasing order as a function of their index \(j\). The goal is to identify an “elbow” in the curve, which represents the point where the eigenvalues exhibit a sharp decline before stabilizing.

For a plot, we chose \(q=2\) or \(q=3\).

Global Quality of Representation on a Principal Axis

The global quality of representation of the data cloud on a principal axis \(\mathbf{u}_{j}\)​ is measured by the percentage of total variance (or inertia) explained by that axis. This is given by: \(\frac{I_{\Delta_{u_{j}}}}{I} = \frac{\lambda_{j}}{\sum_{j=1}^{p}\lambda_{j}}\)

The closer the quality of representation to 1 (or 100%), the more the original data cloud (before projection) is concentrated around the principal axis. This implies that the projection of the data onto this axis provides a faithful and informative representation of the original structure.

Global Quality of Representation on a Principal Subspace

The global quality of representation of the data cloud on the principal subspace \(E_{q}\) spanned by the first \(q\) principal components \(\mathbf{u}_{1}, \mathbf{u}_{2}, \dots, \mathbf{u}_{q}\) is measured by the proportion of total variance (or inertia) explained by this subspace: \(\frac{I_{E_{q}}}{I} = \frac{\lambda_{1} + \lambda_{2} + \dots + \lambda_{q}}{\sum_{j=1}^{p}\lambda_{j}}\) This measure, expressed as a percentage, indicates how well the reduced-dimensional subspace \(E_{q}\) preserves the structure of the original data cloud.

Quality of Representation of a data point on a Principal Axis

The quality of the representation of a data point \(i\) on a principal axis \(\mathbf{u}_{j}\) is measured by the squared cosine of the angle between the data point’s position in the transformed space and its projection onto the axis: \(\cos^{2} \theta_{\mathbf{M}}\left(\mathbf{\tilde{x}}_{i}, P_{\mathbf{\Delta_{u_{j}}}}(\mathbf{\tilde{x}}_{i}) \right) = \frac{\lVert P_{\mathbf{\Delta}_{u_{j}}}(\mathbf{\tilde{x}}_{i})\lVert_{\mathbf{M}}^{2}}{\lVert \mathbf{\tilde{x}}_{i}^{2}\lVert_{\mathbf{M}}^{2}} = \frac{\lVert c_{i}^{j}\mathbf{u}_{j}\lVert_{\mathbf{M}}^{2}}{\lVert \sum_{j=1}^{p} c_{i}^{j} \mathbf{u}_{j} \lVert_{\mathbf{M}}^{2}} = \frac{(c_{i}^{j})^{2}}{\sum_{j=1}^{p}(c_{i}^{j})^{2}}\)

Quality of Representation of a data point on a Principal Subspace

The quality of the representation of a data point \(i\) on the principal subspace \(E_{q}\) spanned by the first \(q\) principal components, is measured by the squared cosine of the angle between the data point’s position vector \(\mathbf{\tilde{x}}_{i}\) and its projection \(P_{E_{q}}\) onto the subspace \(E_{q}\): \(\cos^{2\theta_{\mathbf{M}}(\mathbf{\tilde{x}}, P_{E_{q}}(\mathbf{\tilde{x}}_{i}))}= \frac{\lVert P_{\mathbf{E}_{q}}(\mathbf{\tilde{x}}_{i})\lVert_{\mathbf{M}}^{2}}{\lVert \mathbf{\tilde{x}}_{i}^{2}\lVert_{\mathbf{M}}^{2}} = \frac{\lVert \sum_{j=1}^{q} c_{i}^{j} \mathbf{u}_{j} \lVert_{\mathbf{M}}^{2}}{\lVert \sum_{j=1}^{p} c_{i}^{j} \mathbf{u}_{j} \lVert_{\mathbf{M}}^{2}} = \frac{\sum_{j=1}^{q}(c_{i}^{j})^{2}}{\sum_{j=1}^{p}(c_{i}^{j})^{2}}\)

• If the cosinus value is close to 1, the data point is weel represented by the subspace, meaning its projection retains most of its variance
• If the cosinus value is low, the data point is poorly represented in the subspace

In practice, a value above \(0.8\) is considered good and one below \(0.5\) means a poor representation. CAUTION the value of the cosinus is not relevant for data point near the origin

Data point’s contribution to a Principal Axis

The contribution of an data point \(i\) to the inertia carried by a principal axis \(\mathbf{\Delta}_{\mathbf{u}_{j}}\) is measured by the ratio: \(\frac{w_{i}(c_{i}^{j})^{2}}{I_{\mathbf{\Delta}_{\mathbf{u}_{j}}}}=\frac{w_{i}(c_{i}^{j})^{2}}{\lambda_j}\) Indeed, \(I_{\mathbf{\Delta}_{\mathbf{u}_{j}}} = \lambda_{j}= \text{var}(\mathbf{c}^{j}) = \sum_{i=1}^{n}w_{i}(c_{i}^{j})^{2}\). It is useful to detect data point which contributes too much to the axis as they are causes for instability.

We consider a data point’s contribution to a principal component axis as too strong if it exceeds the data point’s weight by a factor of \(\alpha\) the weight \(w_{i}\) of the data point: \(\frac{w_{i}(c_{i}^{j})^{2}}{\lambda_{j}} \geq \alpha w_{i} \iff \frac{(c_{i}^{j})^{2}}{\lambda_{j}}=(d_{i}^{j})^{2} \geq \alpha\) The value of \(\alpha\) is chosen between 2 and 4 depending on the data. Once detected, these data point can be: -Excluded for the computation of the PCA - Reintegrated as additional data points, by adding them to the representation on the principal axes.

Describing a data point Map

• Report the percentage of inertia explained by each axis and by the considered plane
• Assess the quality of representation of data points. Identify poorly represented data points in this plane and remove them from the analysis
• Analyse the contributions of data points. Identify those with excessive contributions. Check for possible errors and consider treating them as supplementary data points.
• Study proximities and oppositions between points in terms of behavior. Identify groups of data points and specific patterns. Verify observed trends based on the original data.

Representation of Variables (or Correlation Circle)

The best \(q\)-dimensional representation (\(q \lt p\)) of the cloud of variables, in term of inertia, is obtained by projecting onto the factorial subspace \(F_{q}\) spanned by the first \(q\) principal factors \(\mathbf{d}^{1}, \mathbf{d}^{2}, \dots ,\mathbf{d}^{q}\). The coordinates of the variable \(\mathbf{\tilde{x}}^{j}\) on each principal factor \(\mathbf{d}^{k}\) are: \(\langle \mathbf{\tilde{x}}^{j}, \mathbf{d}^{k} \rangle_{D_{w}} = \text{cov}(\mathbf{\tilde{y}}^{j}, \mathbf{d}^{k}) = \sqrt{\lambda_{k}u_{k}^{j}},k=1,\dots,q\). The projection of the variable \(j\) onto \(F_{q}\) is \(P_{F_{q}} = \sum_{k=1}^{q}\text{cov}(\mathbf{\tilde{x}}^{j},\mathbf{d}^{k})\mathbf{d}^{k}=\sum_{k=1}^{q}\sqrt{\lambda_{k}}u_{k}^{j}\mathbf{d}^{k}\)

Global quality of representation on a Factorial Axis

The overall quality of the representation of the data cloud on a factorial axis \(\mathbf{\Delta}_{d^k}\) is measured by the percentage of inertia explained by this axis:\(\frac{I_{\mathbf{\Delta}_{d^{k}}}}{I} = \frac{\lambda_{k}}{\sum_{j=1}^{p}\lambda_{j}}\) The closer this quality measure is to 1, the more the original cloud (before projection) is concentrated around the axis, and the less its projected image is distorted.

Global Quality of the Representation of the Data Cloud on a Factorial Subspace

The overall quality of the representation of the data cloud on the factorial subspace \(F_{q}\) generated by the first $q$ principal factors \(\mathbf{d}^{1},\mathbf{d}^{2}, \dots, \mathbf{d}^{q}\) is measured by the proportion of inertia explained by \(F_{q}\): \(\frac{I_{F_{q}}}{I} = \frac{\lambda_{1} + \lambda_{2} + \dots + \lambda_{q}}{\sum_{j=1}^{p}\lambda_{j}}\)

Quality of the Representation of a Variable on a Factorial Axis

The quality of the representation of a variable $j$ on a factorial axis \(\mathbf{\Delta}_{d^{k}}\) is measured by the squared cosine of the angle between \(\mathbf{\tilde{x}}^{j}\)​ and its projection onto this axis: \(\cos^{2}\theta_{D_{w}}(\mathbf{\tilde{x}}^{j},P_{\mathbf{\Delta}_{d^{k}}}(\mathbf{\tilde{x}}^{j})) = \frac{\lVert P_{\mathbf{\Delta}_{d^{k}}}(\mathbf{\tilde{x}}^{j})\lVert_{D_{w}}^{2}}{\lVert \mathbf{\tilde{x}}^{j}\lVert_{D_{w}}^{2}} = \frac{\lVert \text{cov}(\mathbf{\tilde{x}}^{j}, \mathbf{d}^{k}) \mathbf{d}^{k} \lVert_{D_{w}}^{2}}{\text{var}(\mathbf{\tilde{x}}^{j})^{2}} = \frac{(\text{cov}(\mathbf{\tilde{x}}^{j}, \mathbf{d}^{k}))^{2}}{\text{var}(\mathbf{\tilde{x}}^{j})^{2}}= (\text{cor}(\mathbf{\tilde{x}}^{j}, \mathbf{d}^{k})^{2})\)

Quality of the Representation of a Variable on a Factorial Subspace

The quality of the representation of a variable $j$ on the factorial subspace \(F_{q}\)​ is measured by the squared cosine of the angle between the vector \(\mathbf{\tilde{x}}^{j}\) ​and its projection \(P_{F_{q}}(\mathbf{\tilde{x}}^{j})\) onto \(F_{q}\):\(cos \theta^2_{D_p} \left( \tilde{\mathbf{x}}^j, P_{F_q} (\tilde{\mathbf{x}}^j) \right) = \frac{\| P_{F_q} (\tilde{\mathbf{x}}^j) \|^2_{D_p}}{\| \tilde{\mathbf{x}}^j \|^2_{D_p}} = \frac{\| \sum_{k=1}^{q} \mathrm{cov}(\tilde{\mathbf{x}}^j, \mathbf{d}^k) \mathbf{d}^k \|^2_{D_p}}{\mathrm{var}(\tilde{\mathbf{x}}^j)^2} = \frac{\sum_{k=1}^{q} \left( \mathrm{cov}(\tilde{\mathbf{x}}^j, \mathbf{d}^k) \right)^2}{\mathrm{var}(\tilde{\mathbf{x}}^j)^2} = \sum_{k=1}^{q} \left( \mathrm{cor}(\tilde{\mathbf{x}}^j, \mathbf{d}^k) \right)^2\)

• If the squared cosine is close to 1, the variable \(j\) is well represented on \(F_{q}\)
• If it is close to 0, the variable \(j\)$ is poorly represented on \(F_{q}\) Only well represented variable into the considered sub-space can be interpreted.

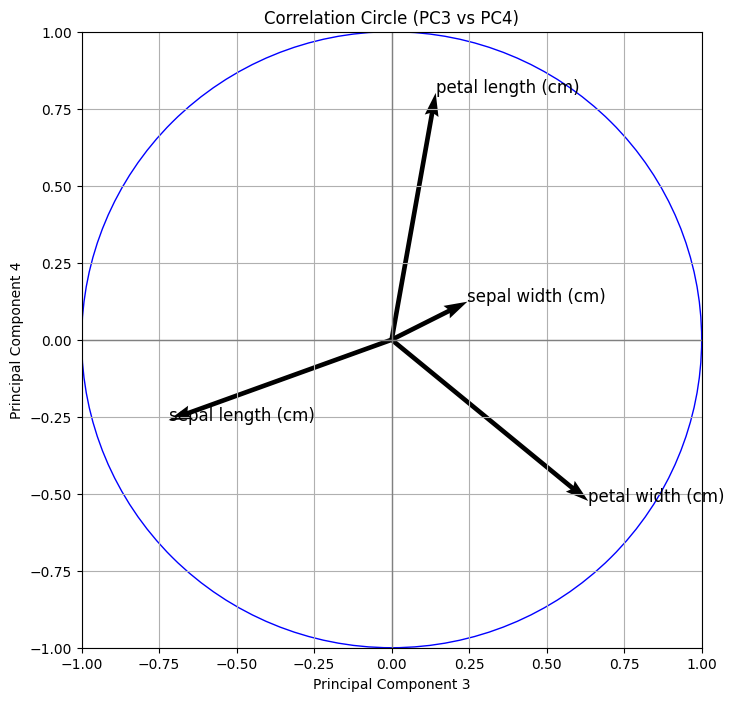

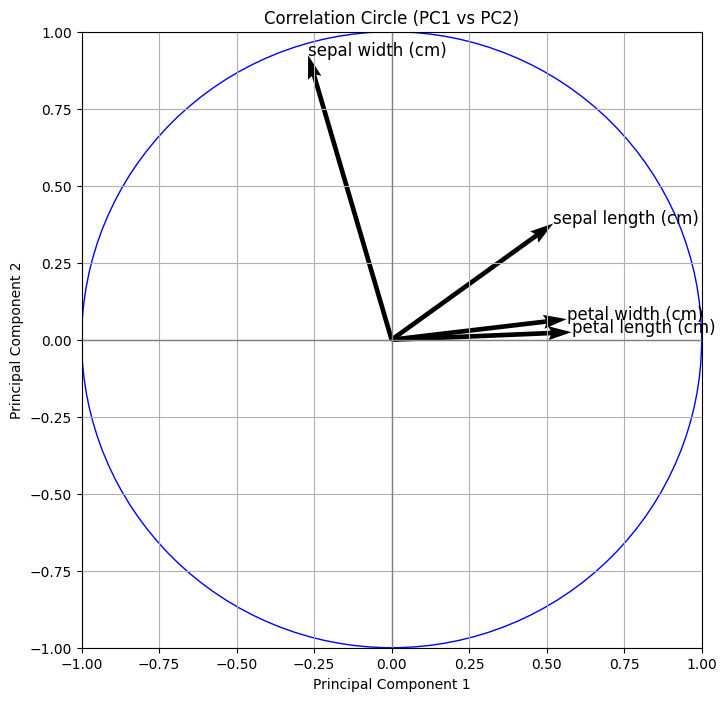

Correlation Circle

In the case of a normed PCA, consider the matrix of standardised data \(\mathbf{Z}\). Then,

• \[\lVert \mathbf{z}^{j} \lVert_{D_{w}}^{2} = \text{var}(\mathbf{z}^{j})=1\]
• \[\langle \mathbf{z}^{j}, \mathbf{d}^{k} \rangle_{D_{w}}=\text{cov}(\mathbf{z}^{j}, \mathbf{d}^{k})=\text{cor}(\mathbf{z}^{j}, \mathbf{d}^{k})\]

Since \(\lVert \mathbf{z}^{j} \lVert_{D_{w}}^{2} = 1\), all the variable are on the unit sphere in the space of variable. The intersection between the unit sphere and a factorial plan is a unit circle, called correlation circle. The projection of a variable \(\mathbf{z}^{j}\) onto a factorial plan is in the circle of correlation.

CONSEQUENCE: A variable \(j\) is well represented on a factorial plan if its orthogonal projection on the plan is close to the correlation circle.

How to Describe a Variable Map or a Correlation Circle in PCA?

• Compute the percentage of inertia (variance) explained by each axis
• Precise the quality of the representation of variables. Detect the poorly represented variable on this plan and remove them from the analysis.
• Compute the correlation of between variables and axis to interpret the new axis function of the initial variables
• Study the covariances, or correlation for a normed PCA, between variables. Detect group of variable. Verify observed trends based on the correlation matrix.

In practice

In practice, to use Principal Component Analysis (PCA) on a dataset, you can use the PCA class from the sklearn.decomposition module. The first step is to standardize the data using StandardScaler from the sklearn.preprocessing module, since PCA is sensitive to the scale of the features.

Here is an example demonstrating the process on the Iris dataset:

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.decomposition import PCA
from sklearn.datasets import load_iris

# Load the Iris dataset
iris = load_iris()
X = iris.data
y = iris.target
feature_names = iris.feature_names

# Standardize the data
Z = (X - X.mean(axis=0)) / X.std(axis=0)

# Perform PCA
pca = PCA(n_components=4)
principal_components = pca.fit_transform(Z)

# Create a DataFrame with the principal components
pca_df = pd.DataFrame(data=principal_components, columns=['PC1', 'PC2', 'PC3', 'PC4'])
pca_df['target'] = y

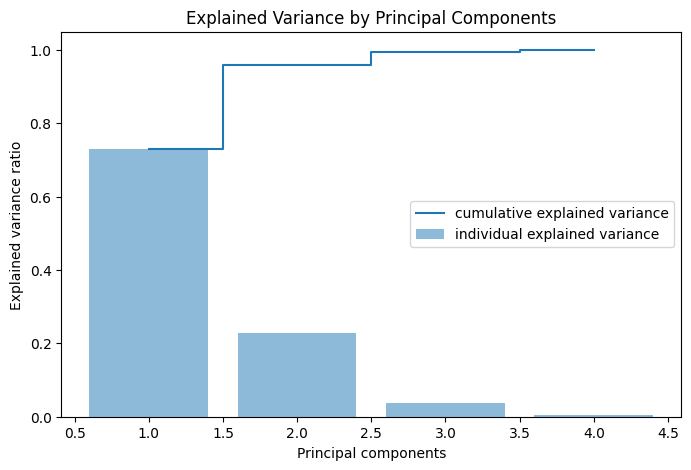

# Explained variance
explained_variance = pca.explained_variance_ratio_

# Plot explained variance
plt.figure(figsize=(8, 5))
plt.bar(range(1, 5), explained_variance, alpha=0.5, align='center', label='individual explained variance')
plt.step(range(1, 5), np.cumsum(explained_variance), where='mid', label='cumulative explained variance')
plt.ylabel('Explained variance ratio')
plt.xlabel('Principal components')
plt.legend(loc='best')
plt.title('Explained Variance by Principal Components')
plt.show()

# Scree plot (Elbow plot)
plt.figure(figsize=(8, 5))
plt.plot(range(1, 5), pca.explained_variance_, marker='o', linestyle='--')
plt.xlabel('Principal Component')
plt.ylabel('Eigenvalue')
plt.title('Scree Plot (Elbow Plot)')
plt.show()

# Kaiser's rule plot
plt.figure(figsize=(8, 5))
plt.plot(range(1, 5), pca.explained_variance_, marker='o', linestyle='--', label='Eigenvalues')
plt.axhline(y=1, color='r', linestyle='-', label='Kaiser\'s Criterion')
plt.xlabel('Principal Component')
plt.ylabel('Eigenvalue')
plt.title('Kaiser\'s Rule Plot')
plt.legend()
plt.show()

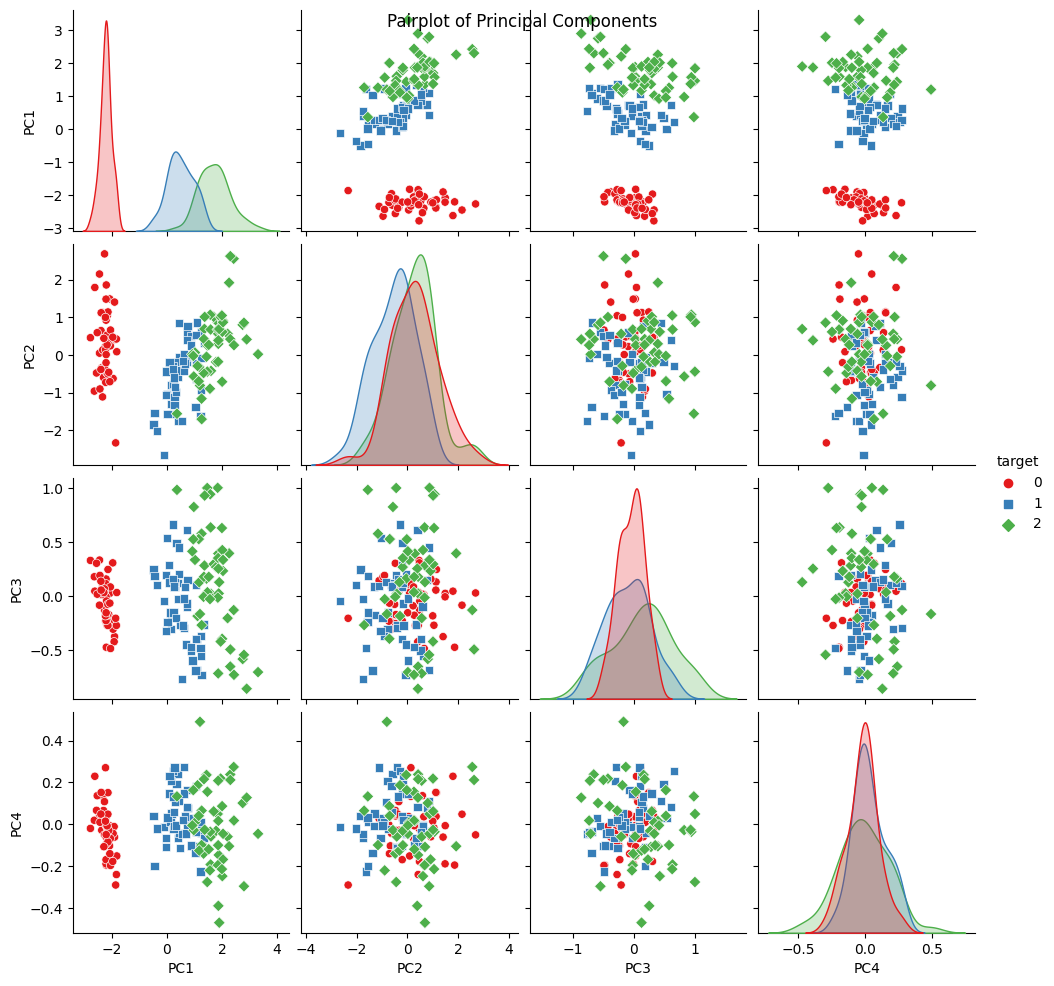

# Pairplot of the first three principal components
sns.pairplot(pca_df, hue='target', markers=["o", "s", "D"], palette='Set1')
plt.suptitle('Pairplot of Principal Components')
plt.show()

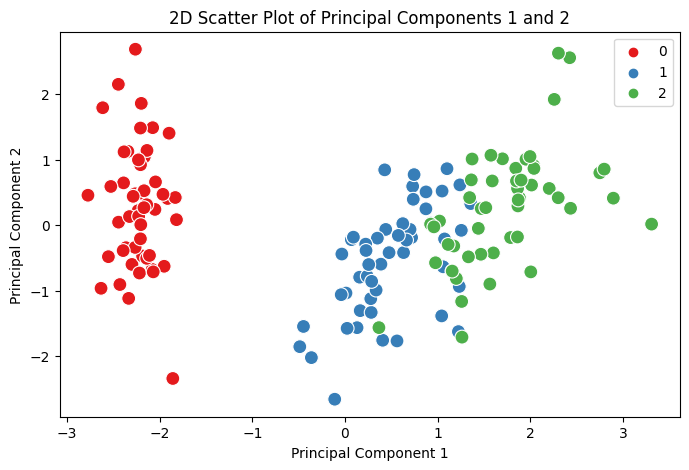

# 2D scatter plot of the first two principal components
plt.figure(figsize=(8, 5))
sns.scatterplot(x='PC1', y='PC2', hue='target', data=pca_df, palette='Set1', s=100)
plt.title('2D Scatter Plot of Principal Components 1 and 2')
plt.xlabel('Principal Component 1')
plt.ylabel('Principal Component 2')
plt.legend(loc='best')
plt.show()

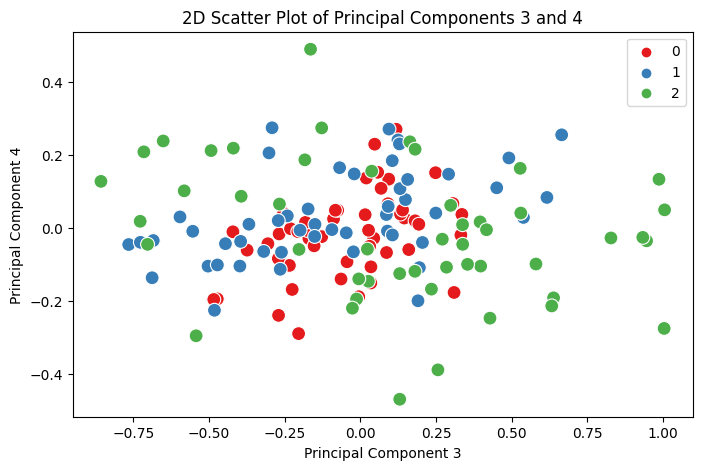

# 2D scatter plot of the third and fourth principal components
plt.figure(figsize=(8, 5))
sns.scatterplot(x='PC3', y='PC4', hue='target', data=pca_df, palette='Set1', s=100)
plt.title('2D Scatter Plot of Principal Components 3 and 4')
plt.xlabel('Principal Component 3')
plt.ylabel('Principal Component 4')
plt.legend(loc='best')
plt.show()

# 3D scatter plot of the first three principal components
from mpl_toolkits.mplot3d import Axes3D

fig = plt.figure(figsize=(10, 7))
ax = fig.add_subplot(111, projection='3d')
scatter = ax.scatter(pca_df['PC1'], pca_df['PC2'], pca_df['PC3'], c=y, cmap='Set1', s=100)
legend1 = ax.legend(*scatter.legend_elements(), title="Classes")
ax.add_artist(legend1)
ax.set_title('3D Scatter Plot of Principal Components')
ax.set_xlabel('Principal Component 1')
ax.set_ylabel('Principal Component 2')
ax.set_zlabel('Principal Component 3')
plt.show()

# Correlation circle for the first two principal components
def plot_correlation_circle(pca, feature_names, pc1, pc2):
    pcs = pca.components_
    plt.figure(figsize=(8, 8))
    plt.quiver(np.zeros(pcs.shape[1]), np.zeros(pcs.shape[1]), pcs[pc1-1, :], pcs[pc2-1, :], angles='xy', scale_units='xy', scale=1)
    for i, feature in enumerate(feature_names):
        plt.text(pcs[pc1-1, i], pcs[pc2-1, i], feature, fontsize=12)
    # Plots the unit circle
    circle = plt.Circle((0, 0), 1, color='b', fill=False)
    plt.xlim(-1, 1)
    plt.ylim(-1, 1)
    plt.xlabel(f'Principal Component {pc1}')
    plt.ylabel(f'Principal Component {pc2}')
    plt.title(f'Correlation Circle (PC{pc1} vs PC{pc2})')
    plt.grid()
    plt.axhline(0, color='grey', lw=1)
    plt.axvline(0, color='grey', lw=1)
    plt.show()

plot_correlation_circle(pca, feature_names, 1, 2)
plot_correlation_circle(pca, feature_names, 3, 4)

Here we can see the explained variance (inertia) kept by each principal component. In this specific example, the first principal component keep 70% of the explained variance already.

If we want to chose a number of principal axis to keep, we can use one of the following method: Here are plots of the data on every possible maps.

More detailed here, the best map is the map $E_{1} \oplus E_{2}$.

The projected data onto the two next principal axis:

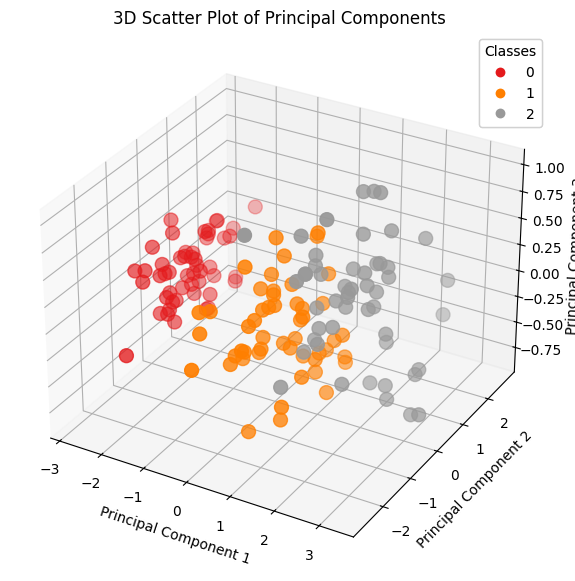

The projected data onto the three best principal axis:

The correlation circle for the two first factor axis (we can see the first factor is related to the petal, it is a mean between its width and length, and the other axis is related to the sepal width)

And for the two lasts:
